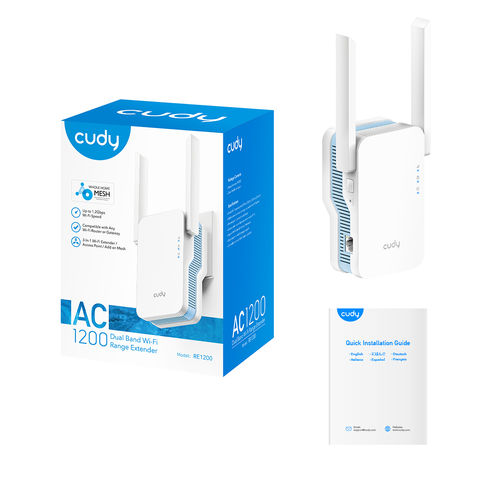

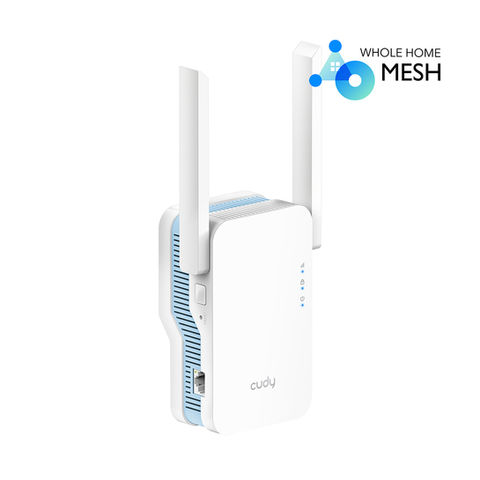

CUDY RE1200
****
כללי
**- מק"ט: RE1200-IL
**
CPU
**- Chipset: MT7628A+MT7613B
- CPU Details: 580 MHZ Single-Core, MIPS24KEC
**
Memory/Storage
**- Flash/ROM: 8 MB (64 Mbit ) NOR
- DDR/RAM: 64 MB (512 Mbit) DDR3
**
Wireless
**- 5 GHz Wi-Fi Speed: 867 Mbps
- 2.4 GHz Wi-Fi Speed: 300 Mbps
- 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- Wi-Fi Antennas: 2× Fixed
- FEM or PA/LNA: 5 GHz: 2× Internal 2.4 GHz: 2× Internal
- Range Performance: Max: 150 m (492 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions
- Wall Performance: One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
- Wi-Fi Transmission Power: CE: <20 dBm (2.4 GHz) <23 dBm (5.15 GHz ~ 5.35 GHz) <30 dBm (5.47 GHz ~ 5.725 GHz)
- Wi-Fi Transmission Power: FCC: <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz) <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz & 5.725 GHz ~ 5.825 GHz)
**
Interfaces
**- 10/100 Mbps RJ45 Ports: 1
- LED: Signal *Strength *WPS Power
- Physical Buttons: WPS Button *Reset Button
- Power Input: AC Plug
- Power Input Note: EU, US, UK plug are available on corresponding region versions
**
Power
**- AC: 110V ~ 220V
**
Reliability
**- Environment: Operating Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
**
Mechanical
**- Install in a Daisy Chain: Recommend to install less than 3 repeaters in a wireless chain.
- Installation: Plug-In-Socket
- Casing Material: Plastic
- Dimension: 129.6×80×48.6 mm 5.1×3.15×1.91 inches
- Product Weight: UK: 210 g (7.41 oz.) US / EU: 205 g (7.23 oz.)
